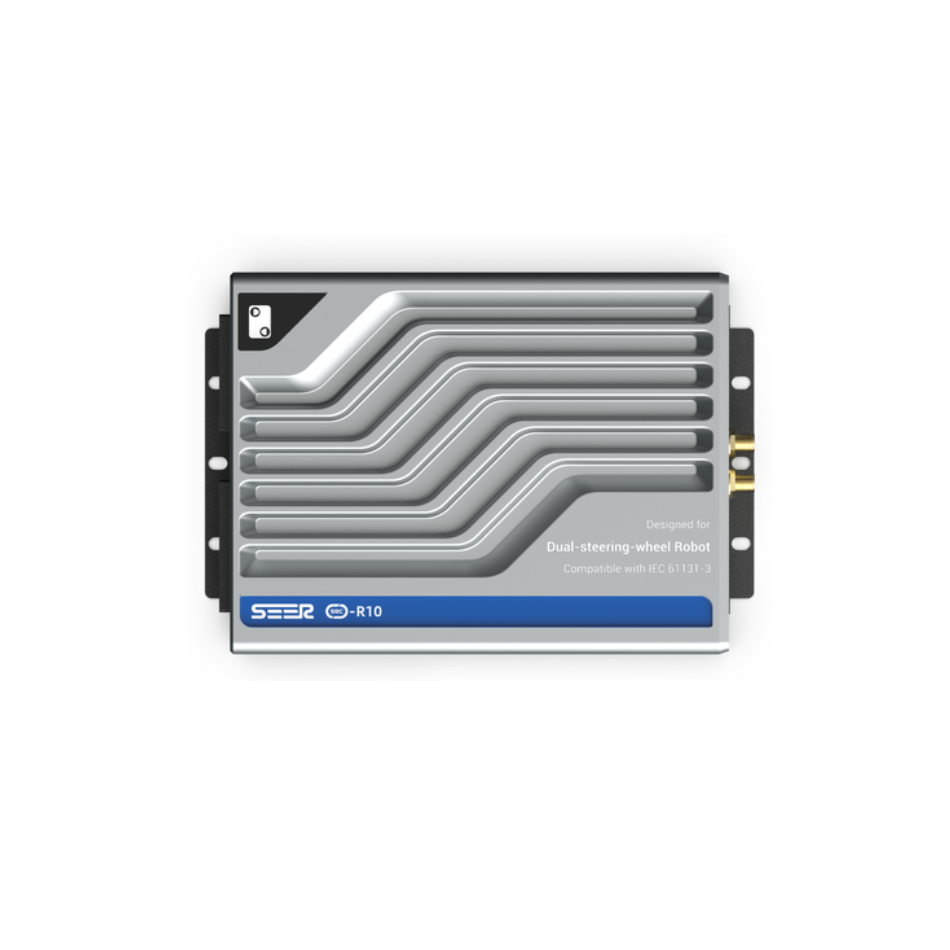

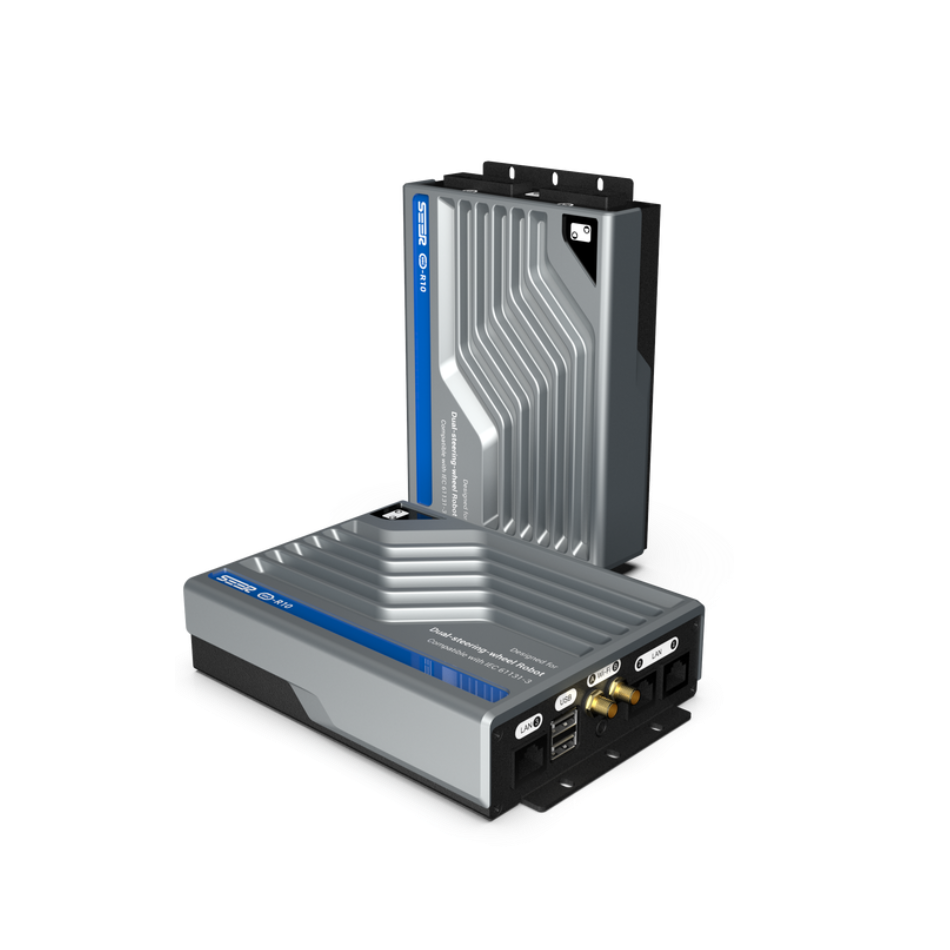

Controller for Dual-steering-wheel Robot
SRC-R10
Controller for Dual-steering-wheel Robot. Key specifications: Positioning Accuracy (mm,°) ±5 mm, ±1° · Navigation Speed(m/s) ≤2 m/s · DO/DI 8 Way / 10 Way.
±5 mm, ±1°
Positioning Accuracy (mm,°)
≤2 m/s
Navigation Speed(m/s)
8 Way / 10 Way
DO/DI
SLAM, QR Code, NFL
Navigation Type
Certifications: CE · EMC · UL
English datasheet, spare parts and integration support provided by Yijia Robotics
— authorized SEER Robotics distributor.
Specifications
Model SRC-R10 — full technical parameters.
Technical parameters
15 items
- Product name
- Controller for Dual-steering-wheel Robot
- Weight
- 0.75 kg (1.65 lb)
- L x W x H
- 171 × 118.5 × 38 mm (6.73 × 4.67 × 1.50 in)
- Power DO
- 2-Way (24 V / 1 A)
- DO
- 8-Way
- DI
- 10-Way
- CAN
- 2-Way
- RS485
- 4-Way
- Battery communication interfaces
- 1-Way (RS485-0)
- Ethernet
- 2-Way Gbps+1-Way 100 Mbps
- Wi-Fi
- Wi-Fi 6: Dual-band 2.4G / 5G 802.11ax 2T2R
- USB3.0
- 2-Way
- Audio input / output
- 1-Way output
- One-button power ON / OFF
- 1-Way
- Battery switch
- 1-Way
Continued
14 items
- Emergency stop input
- 1-Way
- Emergency stop output
- 1-Way
- Positioning Accuracy
- ±5 mm, ±1° (±0.2 in, ±1°)
- Driving speed
- ≤2 m/s (≤6.56 ft/s)
- Map area (single frame)
- ≤400000 m² (≤4,305,560 sq.ft)
- Basic functions
- ●
- Advanced motion model
- ●（only the dual-steering-wheel motion model）
- Advanced recognition function
- ○
- Codesys
- ○
- Ambient temperature and humidity range
- TEMP: -30℃ to 55℃ / RH: 10% to 90%, no compression, no condensation (TEMP: -22°F to 131°F / RH: 10% to 90%, no compression, no condensation)
- Working voltage
- 24 V
- IP rating
- IP20
- CE
- Conform to EN 61010-1:2010, CE-EMC (IEC 61326-1), CE-LVD Standards
- ETL
- UL/CSA 61010-1:2012+R1:2018;UL/CSA61010-2-201:2018
Overview
The SRC-R10 is a controller for dual-steering-wheel robot from SEER Robotics, supplied by Yijia Robotics with English documentation, spare parts and integration support.
- Positioning Accuracy (mm,°): ±5 mm, ±1°
- Navigation Speed(m/s): ≤2 m/s
- DO/DI: 8 Way / 10 Way
- Navigation Type: SLAM, QR Code, NFL
- Motion Model: Dual Steering Drive
- CAN/RS485: 2 Way / 4 Way
Standard features
- Basic functions
Optional
- Advanced recognition function
- Codesys
Why buy from Yijia Robotics
- Authorized SEER Robotics distributor — genuine hardware and factory firmware.
- English datasheets, wiring diagrams and commissioning support.
- Spare parts stock and remote technical assistance.
- Fleet sizing, simulation and on-site integration engineering.
Need pricing for the SRC-R10?
Send us your application details — payload, lift height, aisle width and annual throughput. We reply with FOB/CIF pricing, lead time and the recommended configuration.
