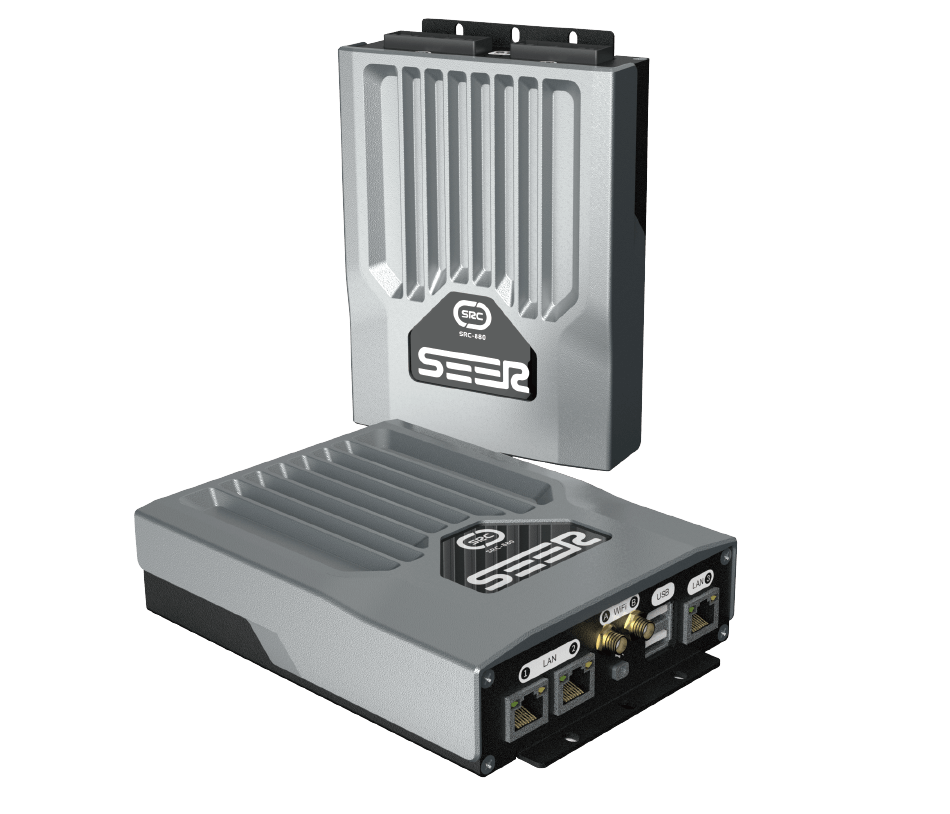

Entry-level Robot Controller

SRC-880

Entry-level Robot Controller. Key specifications: Positioning Accuracy (mm,°) ±5, ±1 · Navigation Speed (m/s) ≤2 · DO / DI 8-Way / 10-Way.

±5, ±1 Positioning Accuracy (mm,°)
≤2 Navigation Speed (m/s)
8-Way / 10-Way DO / DI
SLAM, QR Code, Laser Reflector, NFL Navigation Type
Request a quote Ask an engineer

Certifications: CE · EMC · UL
English datasheet, spare parts and integration support provided by Yijia Robotics — authorized SEER Robotics distributor.

Specifications

Model SRC-880 — full technical parameters.

Technical parameters 13 items
Product name
Entry-level Robot Controller
Weight
0.75 kg
L x W x H
171 x 118.5 x 38 mm
Power DO
2-Way (24 V / 1 A)
DO
8-Way
DI
10-Way
CAN
2-Way
RS485
4-Way
Battery communication interfaces
1-Way (RS485-0)
Ethernet
2-Way Gbps+1-Way 100 Mbps
Wi-Fi
Dual-band 2.4G / 5G 802.11ac 2T2X
USB2.0
2-Way
Audio input / output
1-Way output
Continued 13 items
One-button power ON / OFF
1-Way
Battery switch
1-Way
Emergency stop input
1-Way
Emergency stop output
1-Way
Navigation accuracy
±5 mm, ±1°
Driving speed
≤2 m/s
Map area (single frame)
≤400000 m²
Basic functions
●
Advanced recognition function
○
Ambient temperature and humidity range
TEMP: -30°C to 55°C / RH: 10% to 90%, no compression, no condensation
Working voltage
24 V
IP rating
IP20
CE
Conform to EN 61010-1:2010, CE-EMC (IEC 61326-1), CE-LVD Standards

Overview

The SRC-880 is a entry-level robot controller from SEER Robotics, supplied by Yijia Robotics with English documentation, spare parts and integration support.

  • Positioning Accuracy (mm,°): ±5, ±1
  • Navigation Speed (m/s): ≤2
  • DO / DI: 8-Way / 10-Way
  • Navigation Type: SLAM, QR Code, Laser Reflector, NFL
  • Motion Model: Two-wheel Differential
  • CAN / RS485: 2-Way / 5-Way

Standard features

  • Basic functions

Optional

  • Advanced recognition function

Why buy from Yijia Robotics

  • Authorized SEER Robotics distributor — genuine hardware and factory firmware.
  • English datasheets, wiring diagrams and commissioning support.
  • Spare parts stock and remote technical assistance.
  • Fleet sizing, simulation and on-site integration engineering.

Need pricing for the SRC-880?

Send us your application details — payload, lift height, aisle width and annual throughput. We reply with FOB/CIF pricing, lead time and the recommended configuration.

Get a quotation

Related models

Other configurations frequently compared with the SRC-880.

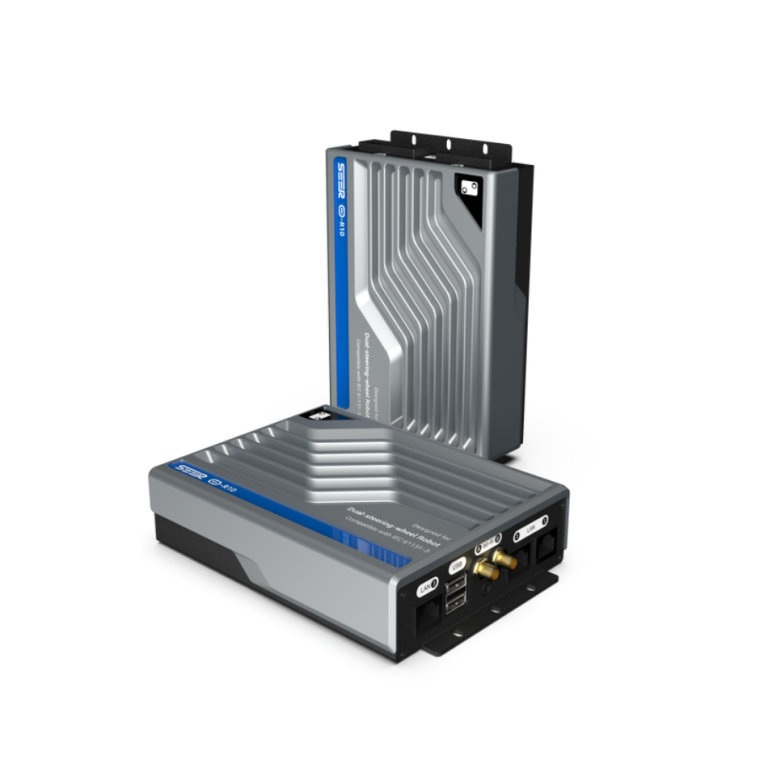

Controller for Dual-steering-wheel Robot SRC-R10
