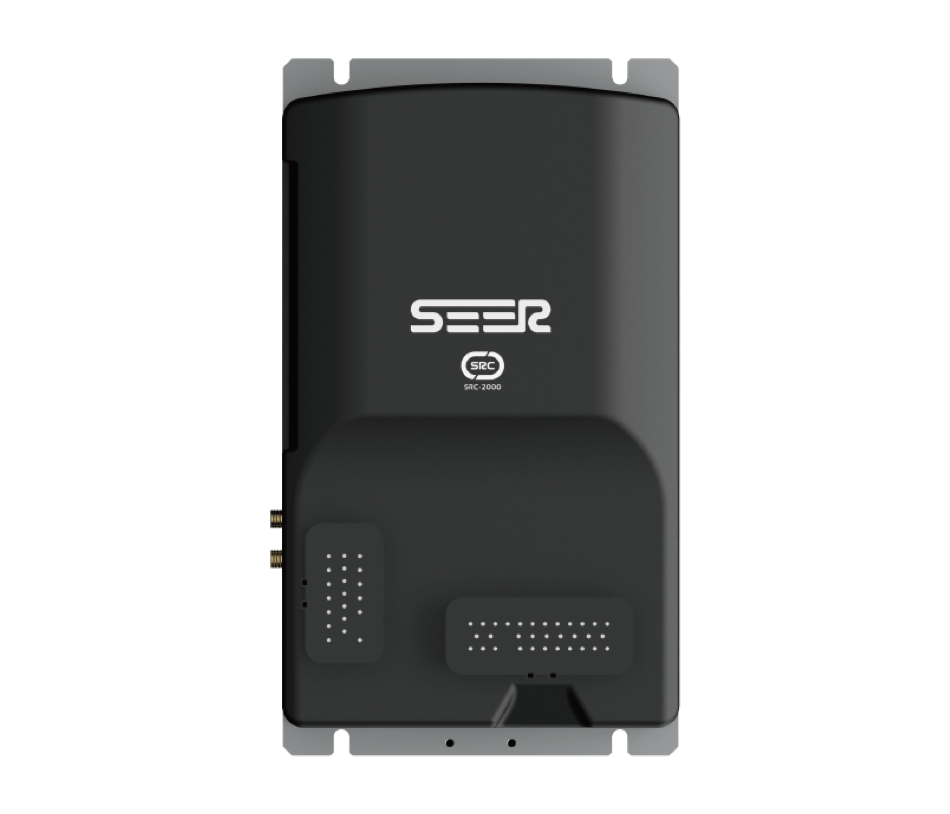

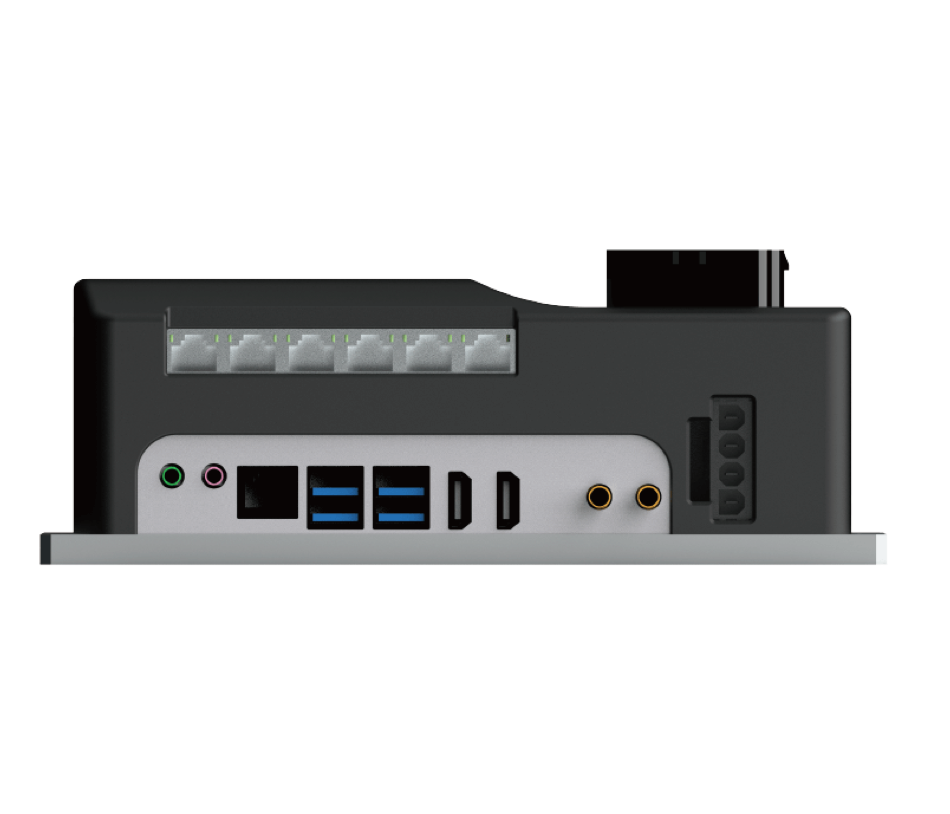

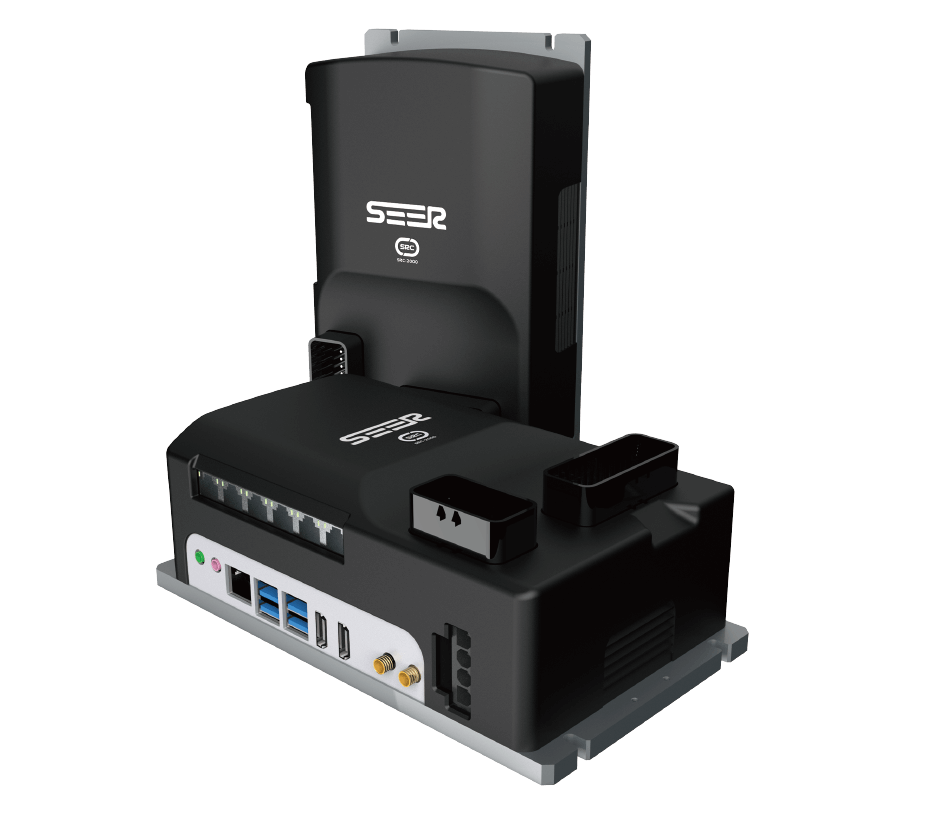

General-purpose Robot Controller

SRC-2000-I(S)

General-purpose Robot Controller. Key specifications: Positioning Accuracy (mm,°) ±5, ±1 · Navigation Speed (m/s) ≤2 · DO / DI 2-Way (400 mA) / 11-Way (NPN).

±5, ±1 Positioning Accuracy (mm,°)

≤2 Navigation Speed (m/s)

2-Way (400 mA) / 11-Way (NPN) DO / DI

SLAM, QR Code, Laser Reflector, NFL Navigation Type

Request a quote Ask an engineer

Certifications: CE · EMC · UL
English datasheet, spare parts and integration support provided by Yijia Robotics — authorized SEER Robotics distributor.

Specifications

Model SRC-2000-I(S) — full technical parameters.

Technical parameters 15 items

Product name: General-purpose Robot Controller
Weight: 1.41 kg
L x W x H: 225 x 128 x 84 mm
Power DO: 8-Way (single-loaded 24 V / 2 A; 8-Way total load capacity ≤5 A)
DO: 2-Way (400 mA)
DI: 11-Way (NPN)
CAN: 2-Way
RS485: 3-Way
Battery communication interfaces: 1-Way (RS485 / RS232 optional interface)
Ethernet: 6+1 Way Gbps (1 is for extended Wi-Fi client)
Wi-Fi: Dual-band 2.4G / 5G 802.11ac 1T1X
USB3.0: 4-Way
Audio input / output: 1-Way / 1-Way
One-button power ON / OFF: 1-Way
Battery switch: 2-Way

Continued 14 items

Emergency stop input: 1-Way
Emergency stop output: 2-Way
Navigation accuracy: ±5 mm, ±1°
Driving speed: ≤2 m/s
Map area (single frame): ≤400000 m²
Basic functions: ●
Advanced motion model: ○
Advanced recognition function: ○
Advanced location function: ○
Ambient temperature and humidity range: TEMP: 0°C to 50°C / RH: 10% to 90%, no compression, no condensation
Working voltage: 24 V
Power consumption: 48 W (excluding DO output current)
IP rating: IP42
CE: Conform to EN 61010-1:2010, CE-EMC (IEC 61326-1) Standards

Overview

The SRC-2000-I(S) is a general-purpose robot controller from SEER Robotics, supplied by Yijia Robotics with English documentation, spare parts and integration support.

Positioning Accuracy (mm,°): ±5, ±1
Navigation Speed (m/s): ≤2
DO / DI: 2-Way (400 mA) / 11-Way (NPN)
Navigation Type: SLAM, QR Code, Laser Reflector, NFL
CAN / RS485: 2-Way / 3-Way
Motion Model: 4 Types

Standard features

Basic functions

Optional

Advanced motion model
Advanced recognition function
Advanced location function

Why buy from Yijia Robotics

Authorized SEER Robotics distributor — genuine hardware and factory firmware.
English datasheets, wiring diagrams and commissioning support.
Spare parts stock and remote technical assistance.
Fleet sizing, simulation and on-site integration engineering.

Need pricing for the SRC-2000-I(S)?

Send us your application details — payload, lift height, aisle width and annual throughput. We reply with FOB/CIF pricing, lead time and the recommended configuration.

Get a quotation
