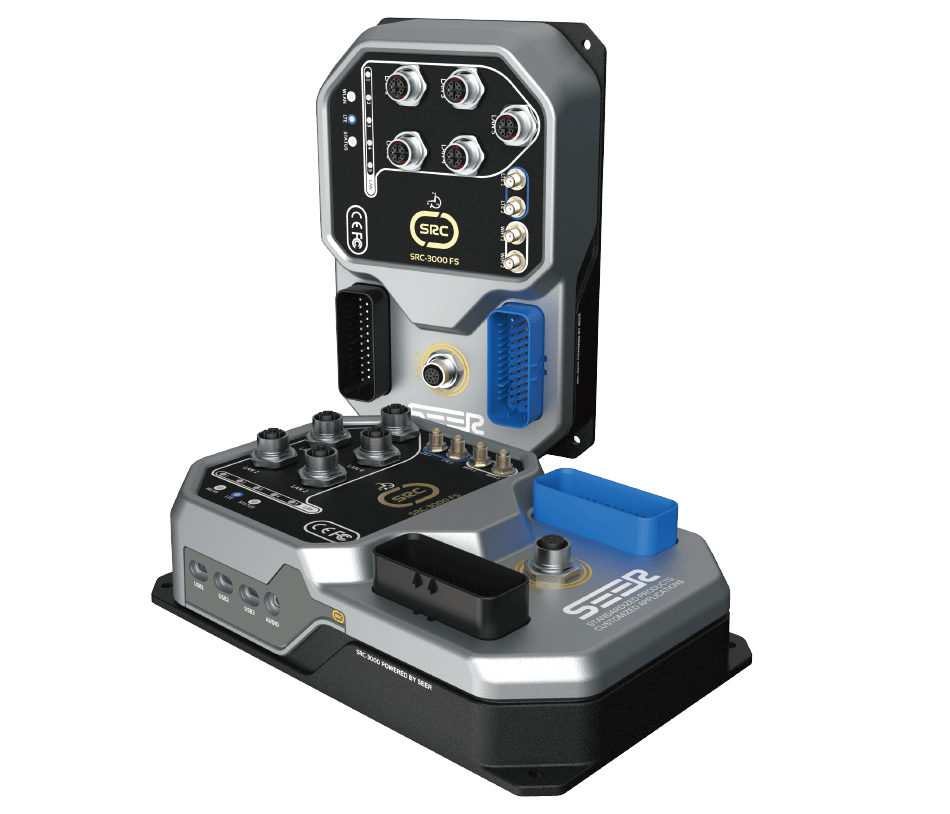

Safety Controller for Autonomous Forklift

SRC-3000FS-FORKLIFT

Safety Controller for Autonomous Forklift. Key specifications: Positioning Accuracy (mm,°) ±2, ±1(Reflector) · Navigation Speed (m/s) ≤2 · DO / DI 12-Way / 24-Way.

±2, ±1(Reflector) Positioning Accuracy (mm,°)

≤2 Navigation Speed (m/s)

12-Way / 24-Way DO / DI

SLAM, QR Code, Laser Reflector, NFL Navigation Type

Request a quote Ask an engineer

Certifications: CE · EMC · FCC · ISO 13849-1 · UL
English datasheet, spare parts and integration support provided by Yijia Robotics — authorized SEER Robotics distributor.

Specifications

Model SRC-3000FS-FORKLIFT — full technical parameters.

Technical parameters 18 items

Product name: Safety Controller for Autonomous Forklift
Weight: 1.8 kg
L x W x H: 225 x 136 x 65.6 mm
Safety integrity level: IEC 61508 SIL2 / IEC 62601 SIL2
Safety performance level: ISO 13849-1 Cat.3 PLd
Power DO: 4-Way (single-loaded 24 V / 1 A; 4-Way total load capacity ≤4 A)
DO: 12-Way (400 mA)
DI: 24-Way (16-Way PNP+8-Way NPN / PNP optional)
CAN: 2-Way
RS485: 3-Way
Battery communication interfaces: 1-Way (CAN / RS485 optional interface)
Sin / Cos encoder interfaces: 2-Way
Ethernet: 5-Way Gbps (TSN)
Wi-Fi: Dual-band 2.4G / 5G 802.11ac 2T2X
USB2.0: 1-Way
USB3.0: 2-Way
Audio input / output: 1-Way / 1-Way
One-button power ON / OFF: 1-Way

Continued 17 items

Battery switch: 1-Way
Emergency stop input: 1-Way
Emergency stop output: 2-Way
Navigation accuracy: ±2 mm, ±1° (Reflector)
Driving speed: ≤2 m/s
Map area (single frame): ≤400000 m²
Basic functions: ●
Advanced motion model: -
Advanced recognition function: ○
Advanced location function: ○
Ambient temperature and humidity range: TEMP: -30°C to 55°C / RH: 10% to 90%, no compression, no condensation
Working voltage: 24 V / 50 V
Power consumption: 18 W (excluding DO output current)
IP rating: IP52 (IP65 need to customize shell)
CE: Conform to EN 61010-1:2010, CE-EMC (IEC 61326-1), CE-RED Standards
ETL: UL 61010-1 UL 61010-2-201 CSA C22.2#61010-1-12 CSA C22.2#61010-2-201
FCC: 47CFR Part 15(2020) ANSI C63.4(2014)

Overview

The SRC-3000FS-FORKLIFT is a safety controller for autonomous forklift from SEER Robotics, supplied by Yijia Robotics with English documentation, spare parts and integration support.

Positioning Accuracy (mm,°): ±2, ±1(Reflector)
Navigation Speed (m/s): ≤2
DO / DI: 12-Way / 24-Way
Navigation Type: SLAM, QR Code, Laser Reflector, NFL
Motion Model: Steering Wheel
CAN / RS485: 2-Way / 3-Way

Standard features

Basic functions

Optional

Advanced recognition function
Advanced location function
