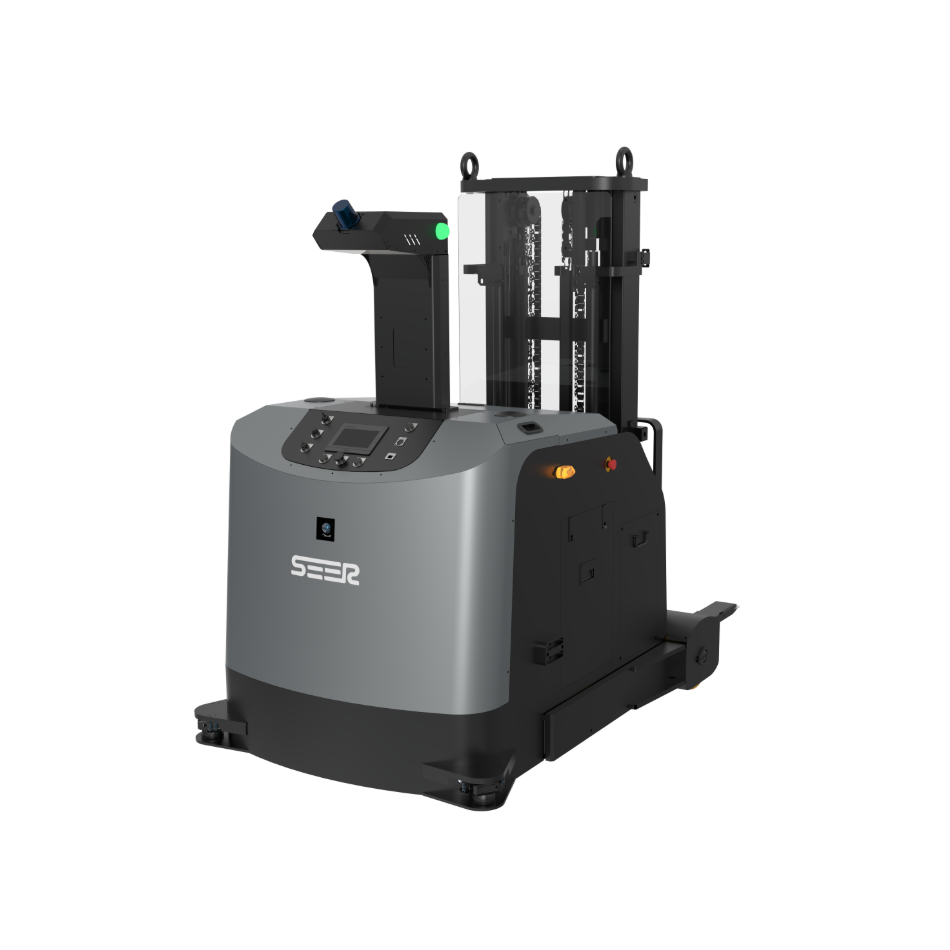

Safety SEER Counterbalance Truck

SCB-3000EU

Safety SEER Counterbalance Truck. Key specifications: Rated Load Capacity (kg) 3000 · Comprehensive Battery Life (h) 10~12 · Standard Lifting Height (mm) 3000 / 3500.

3000 Rated Load Capacity (kg)

10~12 Comprehensive Battery Life (h)

3000 / 3500 Standard Lifting Height (mm)

1859 Minimum Turning Radius (mm)

Request a quote Ask an engineer

Certifications: CE · EMC · ISO 3691-4 · ISO3691-4 · UL
English datasheet, spare parts and integration support provided by Yijia Robotics — authorized SEER Robotics distributor.

Specifications

Model SCB-3000EU — full technical parameters.

Technical parameters 21 items

Product name: Safety SEER Counterbalance Truck
Operation type: Automatic navigation
Navigation type: Laser SLAM
Pallet type: Open pallet / closed pallet
Rated load capacity: 3000 kg (6613.86 lb)
Load centre distance: 500 mm (19.69 in)
Weight (with battery): 4970 / 5030 kg (10956.96 / 11089.24 lb)
Standard lifting height: 3000 / 3500 mm (118.11 / 137.80 in)
Forklift dimensions: L x W x H: SLM-SLE4248: 3222 x 1420 x 2228 / 3302 x 1420 x 2478 mm (126.85 x 55.91 x 87.71 / 130.00 x 55.91 x 97.56 in)
Fork dimensions: L x W x H: 1220 x 135 x 45 mm (48.03 x 5.31 x 1.77 in)
Fork outer width: 450 mm to 750 mm (17.72 to 29.53 in)
Right-angle stacking aisle width, pallet 1000x1200 (1200 placed along the fork): 3348+200 / 3417+200 mm (131.81+7.87 / 134.53+7.87 in)
Right-angle stacking aisle width, pallet 800x1200 (1200 placed along the fork): 3339+200 / 3417+200 mm (131.46+7.87 / 134.53+7.87 in)
Right-angle stacking aisle width, pallet 1000x1000 (1000 placed along the fork): 3339+200 / 3417+200 mm (131.46+7.87 / 134.53+7.87 in)
Minimum turning radius: 1859 mm (73.19 in)
Ambient temperature and humidity range: TEMP: 0℃ to 50℃ / RH: 10% to 90%, no compression, no condensation (TEMP: 32F to 122F / RH: 10% to 90%, no compression, no condensation)
Driving speed: full load / no load: 1.0 / 1.5 m/s (3.28 / 4.92 ft/s)
Passability (slope / step / gap): ＜3% / 10 mm / 30 mm (＜3% / 0.39 in / 1.18 in)
Navigation position accuracy: ±10 mm (±0.39 in)
Navigation angle accuracy: ±1°
Battery specifications: 48 V / 315 Ah (lithium iron phosphate)

Continued 20 items

Comprehensive battery life: 10 h to 12 h
Charging time (10% to 80%): 3 h to 5 h
Charging method: Manual / Automatic
Lidar number: 1（SLM-SLE4248）+3（SICK HV） or 1 (SLM-SLE4248) +2 (SICK HV) +1（SLD40)
Wi-Fi roaming: ●
3D obstacle avoidance: ●
Pallet recognition: ●
Cage stack: ○
High shelf pallet recognition: ○
Pallet stack: ○
HMI display: ●
E-stop button: ●
Sound and light indicator: ●
Braking distance: 1 m/s / 1.5 m/s: ≤30 cm / ≤50 cm (≤11.81 in / ≤19.69 in)
360° laser protection: ●
Fork height protection: ●
ISO 3691-4: ●
EMC: ●
UN38.3: ●
RED: ●

Overview

The SCB-3000EU is a safety seer counterbalance truck from SEER Robotics, supplied by Yijia Robotics with English documentation, spare parts and integration support.

Rated Load Capacity (kg): 3000
Comprehensive Battery Life (h): 10~12
Standard Lifting Height (mm): 3000 / 3500
Minimum Turning Radius (mm): 1859
Positioning Accuracy (mm,°): ±10，±1
Driving Speed (Full load / No load) (m/s): 1.0 / 1.5

Standard features

Wi-Fi roaming
3D obstacle avoidance
Pallet recognition
HMI display
E-stop button
Sound and light indicator
360° laser protection
Fork height protection
ISO 3691-4
EMC
UN38.3
RED

Optional

Cage stack
High shelf pallet recognition
Pallet stack

Why buy from Yijia Robotics

Authorized SEER Robotics distributor — genuine hardware and factory firmware.
English datasheets, wiring diagrams and commissioning support.
Spare parts stock and remote technical assistance.
Fleet sizing, simulation and on-site integration engineering.

Need pricing for the SCB-3000EU?

Send us your application details — payload, lift height, aisle width and annual throughput. We reply with FOB/CIF pricing, lead time and the recommended configuration.

Get a quotation
