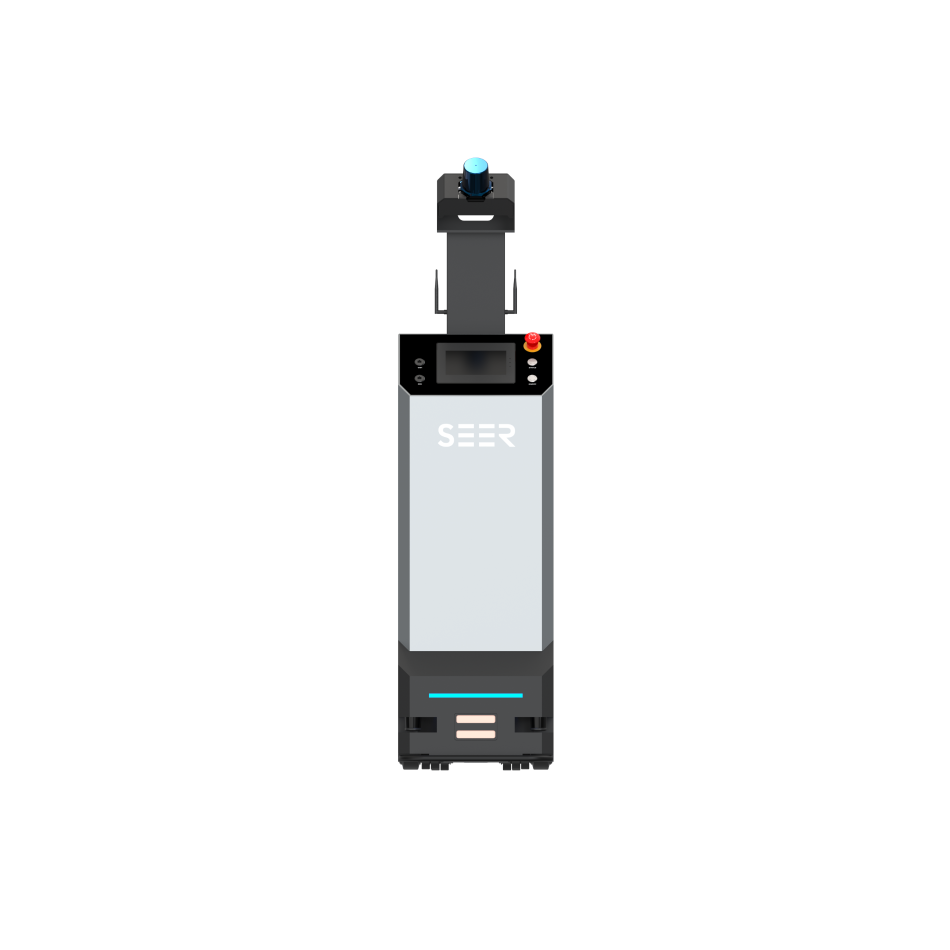

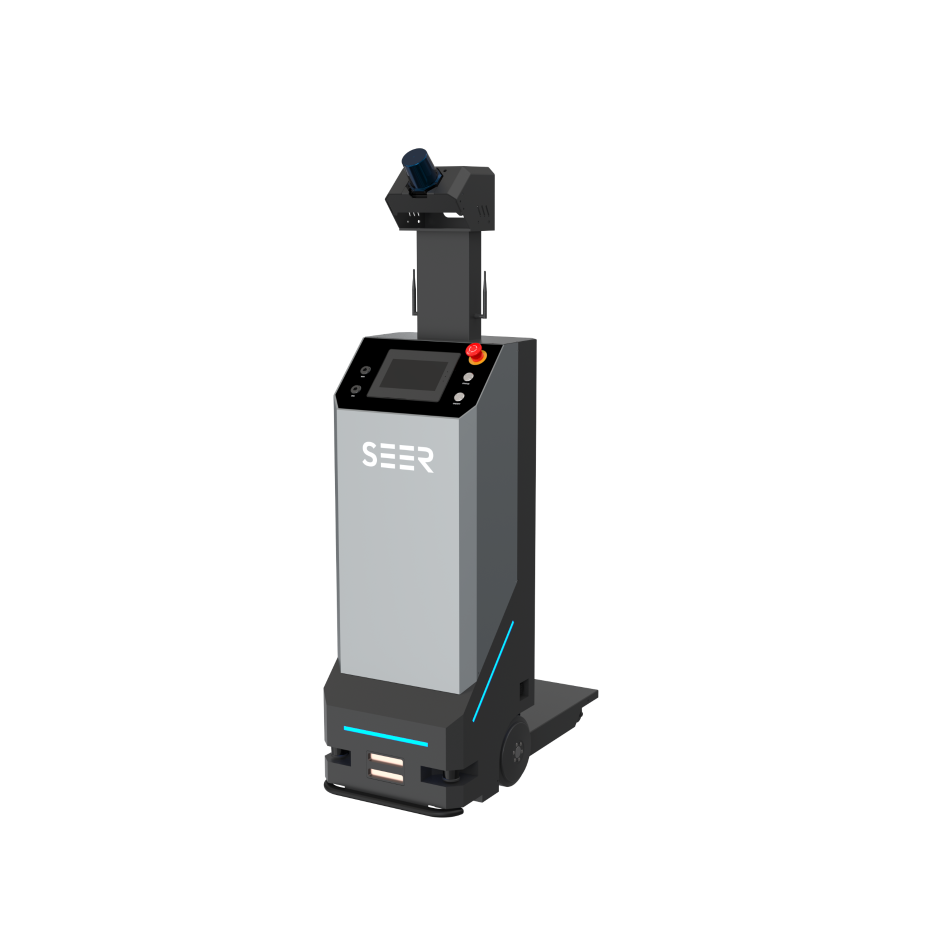

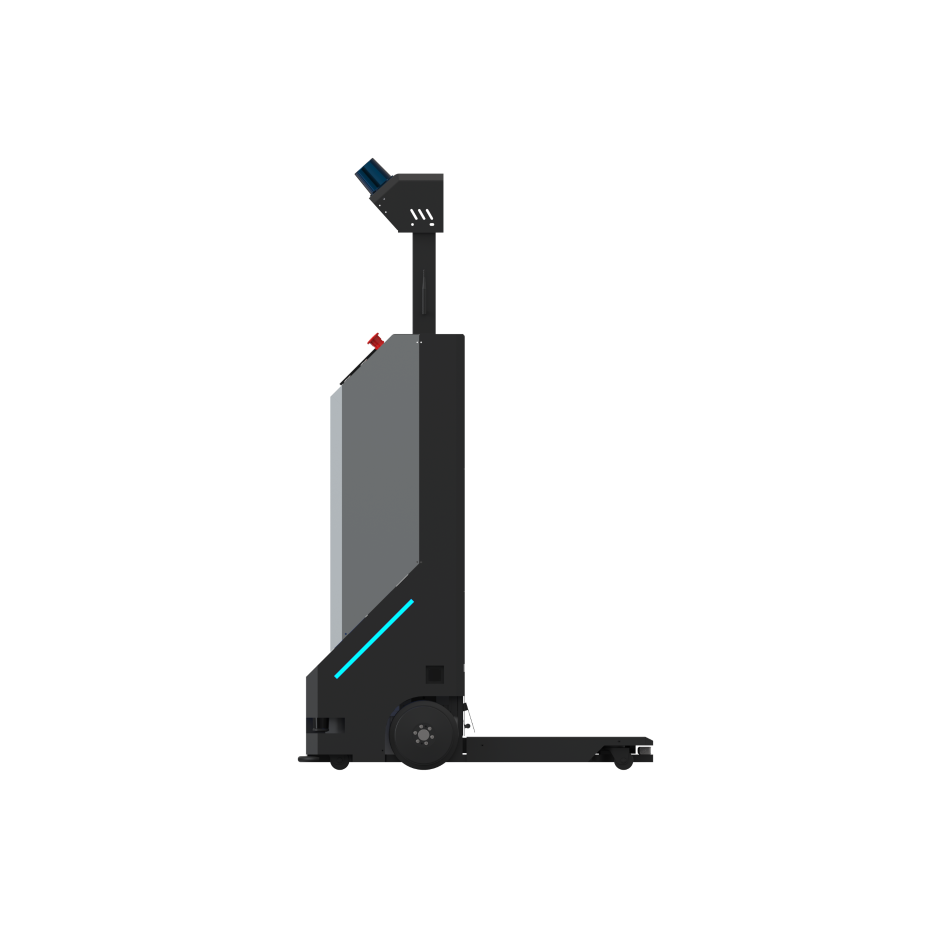

Laser SLAM Single Fork Autonomous Forklift
SFL-300L
Laser SLAM Single Fork Autonomous Forklift. Key specifications: Rated Load (kg) 300 · Run Time (h) 8 · Lifting Height (mm) 150±5.
300
Rated Load (kg)
8
Run Time (h)
150±5
Lifting Height (mm)
650
Minimum Turning Radius (mm)
Certifications: CE · UL
English datasheet, spare parts and integration support provided by Yijia Robotics
— authorized SEER Robotics distributor.
Specifications
Model SFL-300L — full technical parameters.
Technical parameters
17 items
- Product name
- Laser SLAM Single Fork Autonomous Forklift
- Operation type
- Automatic navigation
- Navigation type
- Laser SLAM
- Pallet type
- Tote dolly / shelf
- Rated load capacity
- 300 kg
- Load centre distance
- 350 mm
- Weight (with battery)
- 230 kg
- Standard lifting height
- 150±5 mm
- Forklift dimensions: L x W x H
- 914 x 400 x 1576 mm
- Fork dimensions: L x W x H
- 480 x 300 mm
- Fork outer width
- 300 mm
- Right-angle stacking aisle width, pallet 1000x1200 (1200 placed along the fork)
- -
- Minimum turning radius
- 650 mm
- Ambient temperature and humidity range
- TEMP: 0°C to 50°C / RH: 10% to 90%, no compression, no condensation
- Driving speed: full load / no load
- 0.8 / 1.4 m/s
- Passability (slope / step / gap)
- ＜3% / 2 mm / 5 mm
- Navigation position accuracy
- ±10 mm
Continued
16 items
- Navigation angle accuracy
- ±1°
- Battery specifications
- 48 V / 35 Ah (ternary lithium)
- Comprehensive battery life
- 8 h
- Charging time (10% to 80%)
- ≤1.5 h
- Charging method
- Manual / Automatic
- Lidar number
- 1（SLM-SLE4248）+2（SLD40）
- Wi-Fi roaming
- ●
- 3D obstacle avoidance
- ●
- Pallet recognition
- ○
- HMI display
- ●
- E-stop button
- ●
- Sound and light indicator
- ●
- Braking distance: 1 m/s / 1.5 m/s
- ≤30 cm / ≤50 cm
- 360° laser protection
- ●
- Bumper strip
- ●
- Fork height protection
- ●
Overview
The SFL-300L is a laser slam single fork autonomous forklift from SEER Robotics, supplied by Yijia Robotics with English documentation, spare parts and integration support.
- Rated Load (kg): 300
- Run Time (h): 8
- Lifting Height (mm): 150±5
- Minimum Turning Radius (mm): 650
- Positioning Accuracy (mm,°): ±10, ±1°
- Driving Speed (Full load/No load) (m/s): 0.8 / 1.4
Standard features
- Wi-Fi roaming
- 3D obstacle avoidance
- HMI display
- E-stop button
- Sound and light indicator
- 360° laser protection
- Bumper strip
- Fork height protection
Optional
- Pallet recognition
Why buy from Yijia Robotics
- Authorized SEER Robotics distributor — genuine hardware and factory firmware.
- English datasheets, wiring diagrams and commissioning support.
- Spare parts stock and remote technical assistance.
- Fleet sizing, simulation and on-site integration engineering.
Need pricing for the SFL-300L?
Send us your application details — payload, lift height, aisle width and annual throughput. We reply with FOB/CIF pricing, lead time and the recommended configuration.
