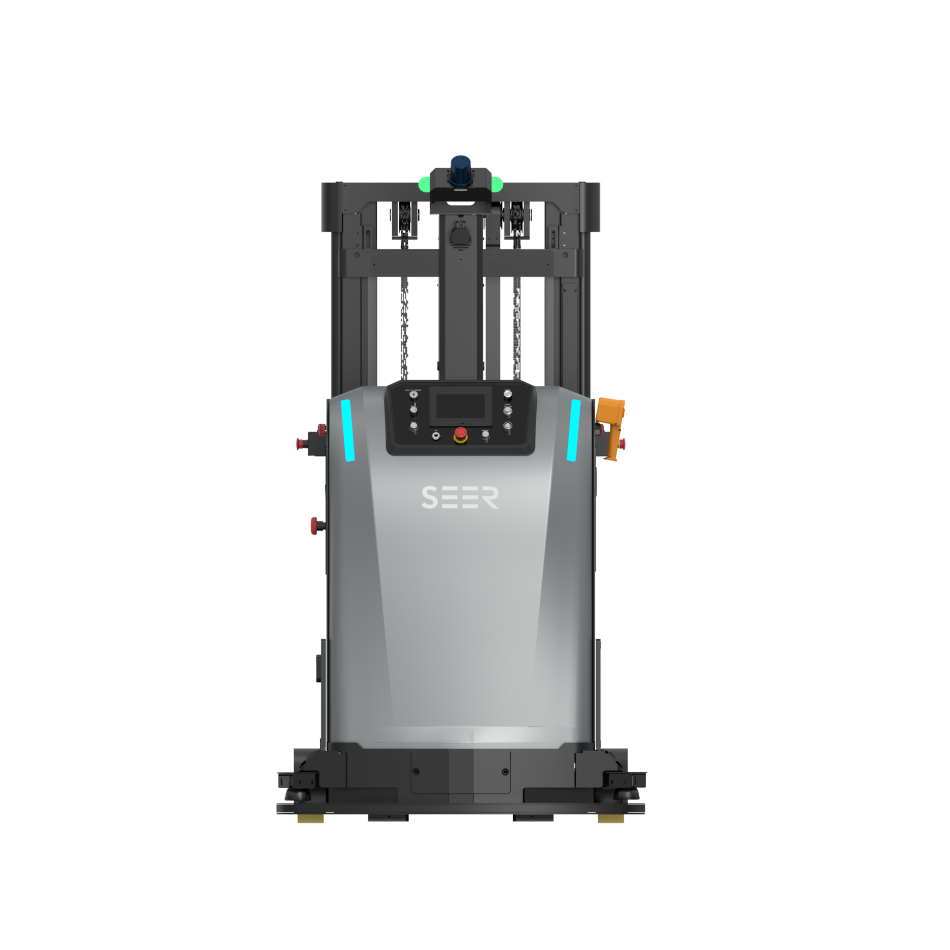

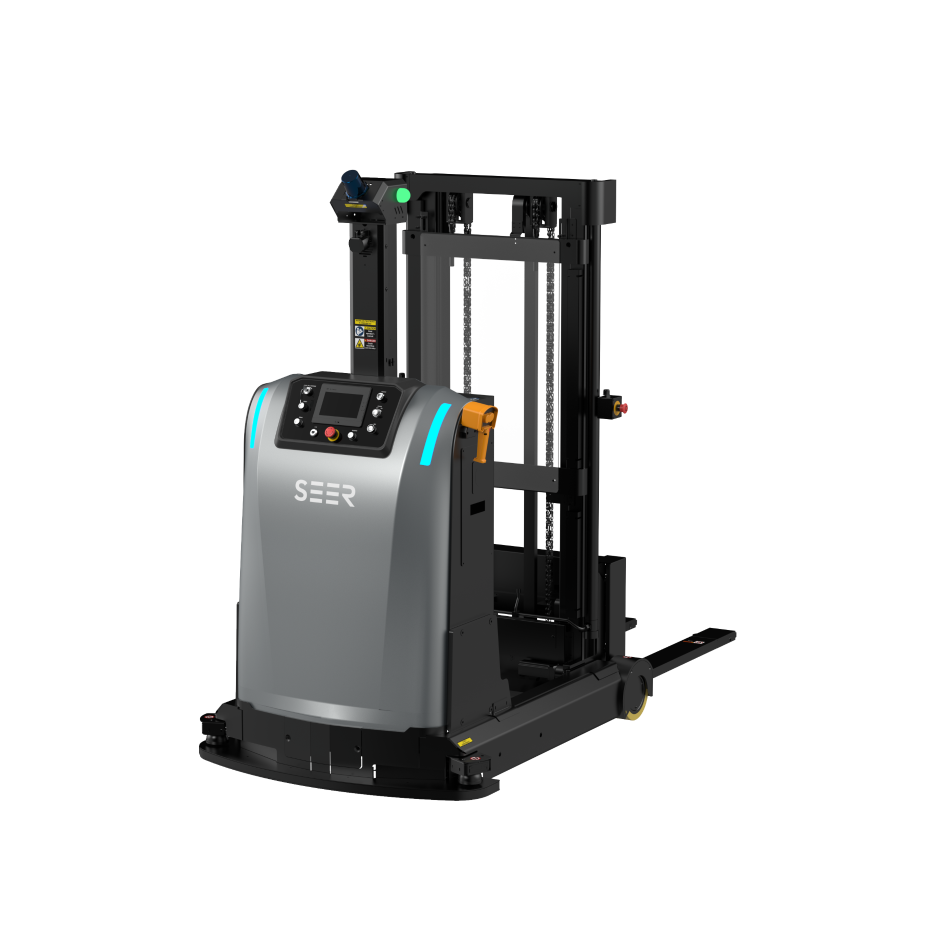

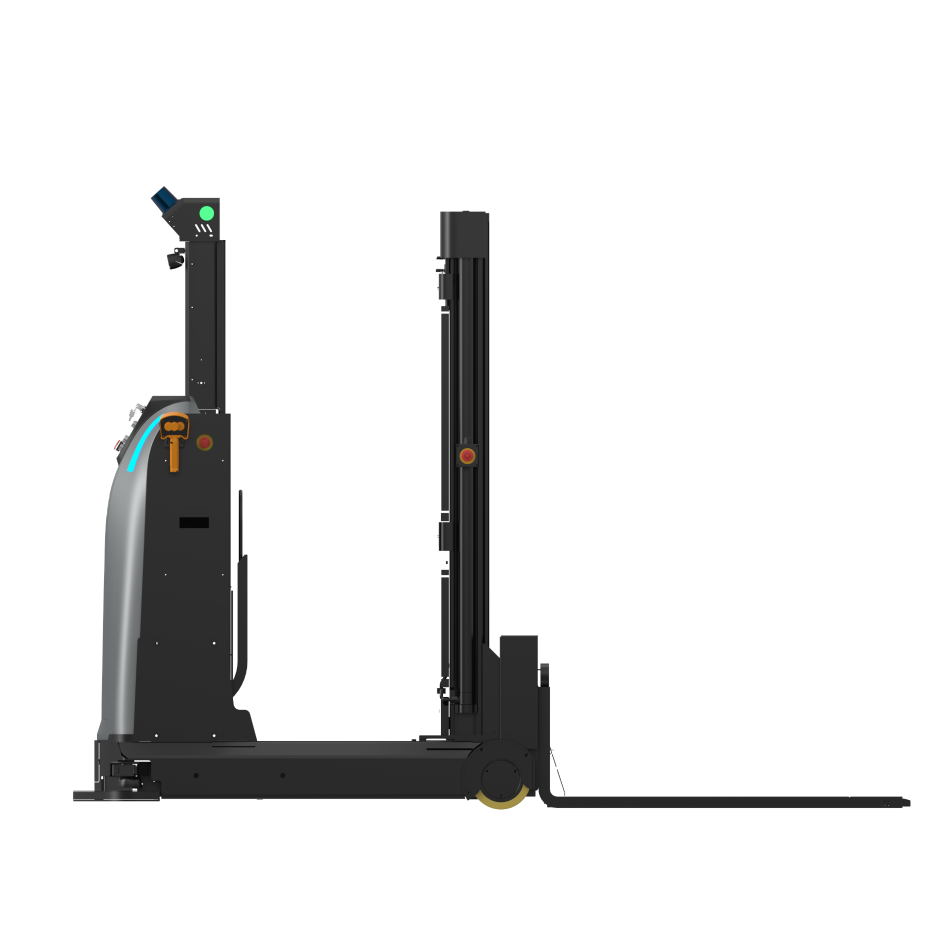

SEER SlimReach 1400
SSR-1400EU
SEER SlimReach 1400. Key specifications: Rated Load Capacity (kg) 1400 · Comprehensive Battery Life (h) 8 · Standard Lifting Height (mm) 1600 / 3000.
1400
Rated Load Capacity (kg)
8
Comprehensive Battery Life (h)
1600 / 3000
Standard Lifting Height (mm)
1480
Minimum Turning Radius (mm)
Certifications: CE · EMC · ISO 3691-4 · UL
English datasheet, spare parts and integration support provided by Yijia Robotics
— authorized SEER Robotics distributor.
Specifications
Model SSR-1400EU — full technical parameters.
Technical parameters
21 items
- Product name
- SEER SlimReach 1400
- Operation type
- Automatic navigation
- Navigation type
- Laser SLAM
- Pallet type
- Open pallet / closed pallet
- Rated load capacity
- 1400 kg (3086.47 lb)
- Load centre distance
- 500 mm (19.69 in)
- Weight (with battery)
- 2060 Kg (4541.52 lb)
- Standard lifting height
- 3000 mm (118.11 in)
- Forklift dimensions: L x W x H
- 2190 x 1192 x 2228 mm （86.22 × 46.93 × 87.72 in)
- Fork dimensions: L x W x H
- 1220 x 122 x 40 mm (48.03 x 4.8 x 1.57 in)
- Fork outer width
- 400 to 700 mm (adjustable) (15.75-27.56 in)
- Right-angle stacking aisle width, pallet 1000x1200 (1200 placed along the fork)
- 2260+200 mm (88.98 +7.87 in)
- Right-angle stacking aisle width, pallet 800x1200 (1200 placed along the fork)
- 2220+200 mm (87.4+7.87 in)
- Minimum turning radius
- 1482 mm (58.35 in)
- Ambient temperature and humidity range
- TEMP: 0℃ to 50℃ / RH: 10% to 90%, no compression, no condensation (TEMP: 32°F to 122°F / RH: 10% to 90%, no compression, no condensation)
- Driving speed: full load / no load
- 1.2 / 1.5 m/s (3.94 / 4.92 ft/s)
- Passability (slope / step / gap)
- ＜3% / 10 mm / 30 mm (＜3% / 0.39 in / 1.18 in)
- Navigation position accuracy
- ±10 mm (±0.39 in)
- Navigation angle accuracy
- ±0.5°
- Battery specifications
- 24 V / 210 Ah (lithium iron phosphate)
- Comprehensive battery life
- 8 h
Continued
20 items
- Charging time (10% to 80%)
- 2.5 h
- Charging method
- Manual / Automatic
- Lidar number
- 1 (SLM-SLE4248) +3 (SICK NanoScan3 HV)
- Wi-Fi roaming
- ●
- 3D obstacle avoidance
- ●
- Pallet recognition
- ○
- Cage stack
- ○
- High shelf pallet recognition
- ○
- Pallet stack
- ○
- HMI display
- ●
- E-stop button
- ●
- Sound and light indicator
- ●
- Braking distance: 1 m/s / 1.5 m/s
- ≤50 cm / ≤72 cm (≤19.69 in / ≤28.35 in)
- 360° laser protection
- ●
- Bumper strip
- ○
- Fork height protection
- ●
- ISO 3691-4
- ●
- EMC
- ●
- UN38.3
- ●
- RED
- ●
Overview
The SSR-1400EU is a seer slimreach 1400 from SEER Robotics, supplied by Yijia Robotics with English documentation, spare parts and integration support.
- Rated Load Capacity (kg): 1400
- Comprehensive Battery Life (h): 8
- Standard Lifting Height (mm): 1600 / 3000
- Minimum Turning Radius (mm): 1480
- Positioning Accuracy (mm,°): ±10, ±0.5
- Driving Speed (Full load / No load) (m/s): 1.2 / 1.5
Standard features
- Wi-Fi roaming
- 3D obstacle avoidance
- HMI display
- E-stop button
- Sound and light indicator
- 360° laser protection
- Fork height protection
- ISO 3691-4
- EMC
- UN38.3
- RED
Optional
- Pallet recognition
- Cage stack
- High shelf pallet recognition
- Pallet stack
- Bumper strip
Why buy from Yijia Robotics
- Authorized SEER Robotics distributor — genuine hardware and factory firmware.
- English datasheets, wiring diagrams and commissioning support.
- Spare parts stock and remote technical assistance.
- Fleet sizing, simulation and on-site integration engineering.
Need pricing for the SSR-1400EU?
Send us your application details — payload, lift height, aisle width and annual throughput. We reply with FOB/CIF pricing, lead time and the recommended configuration.
