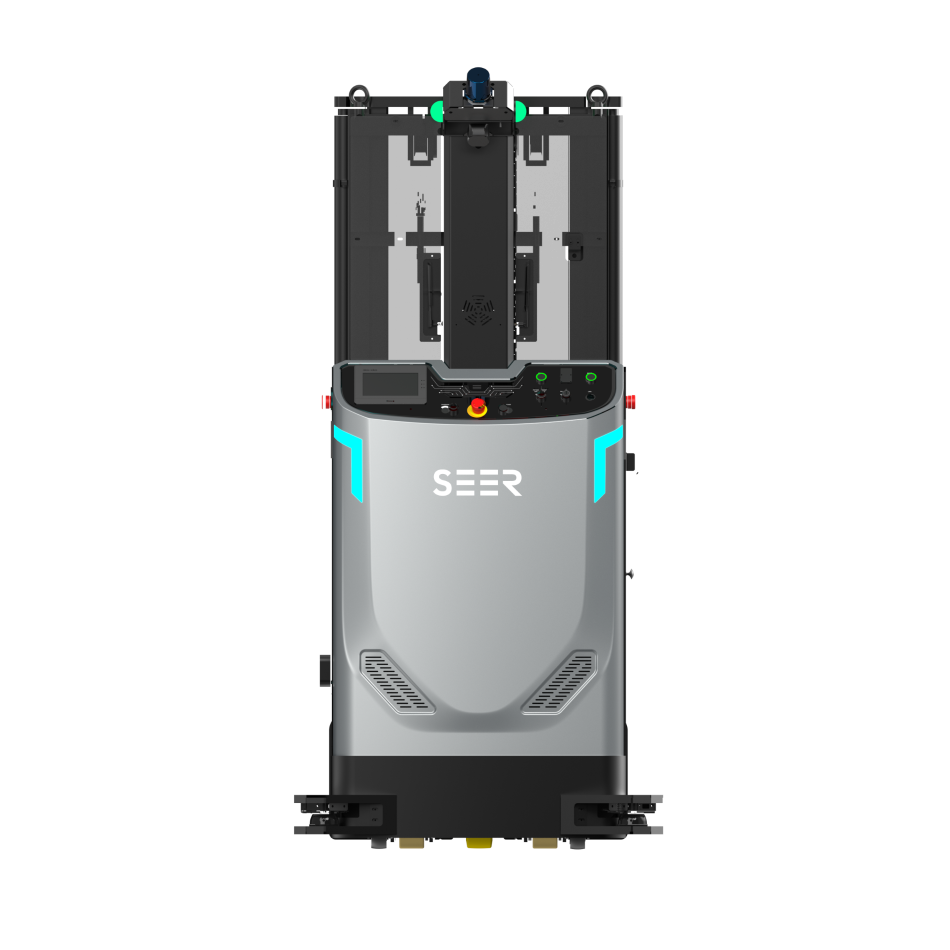

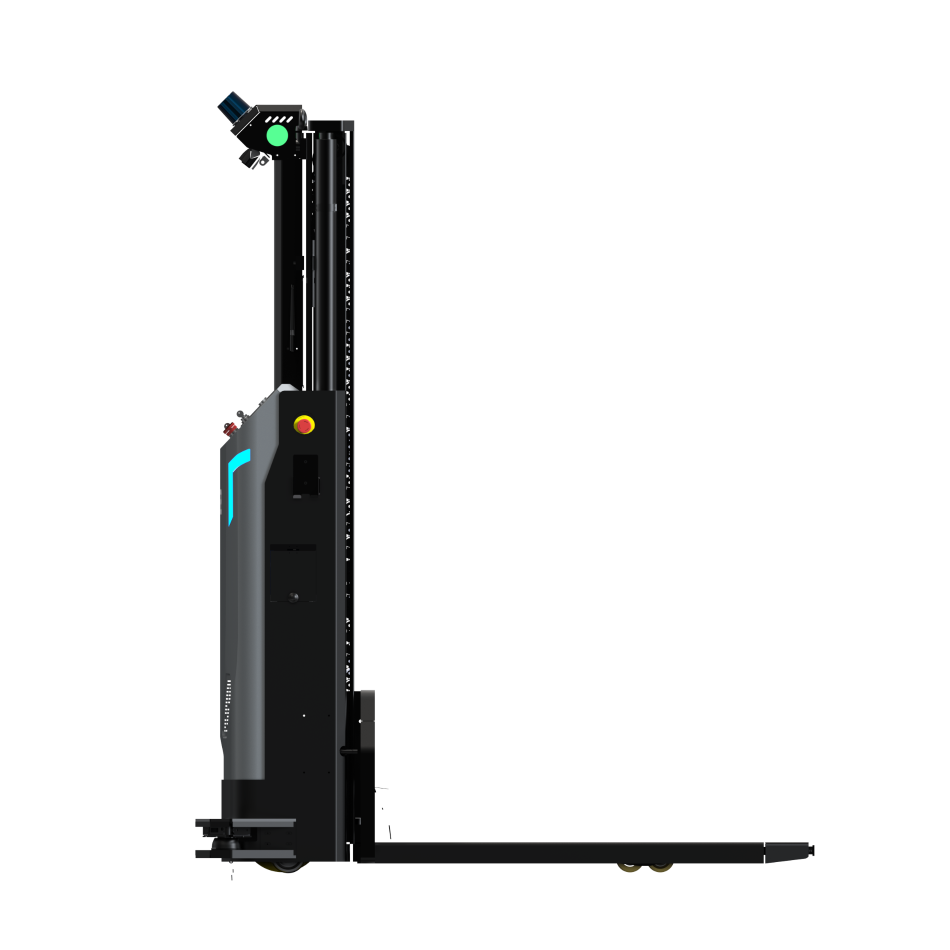

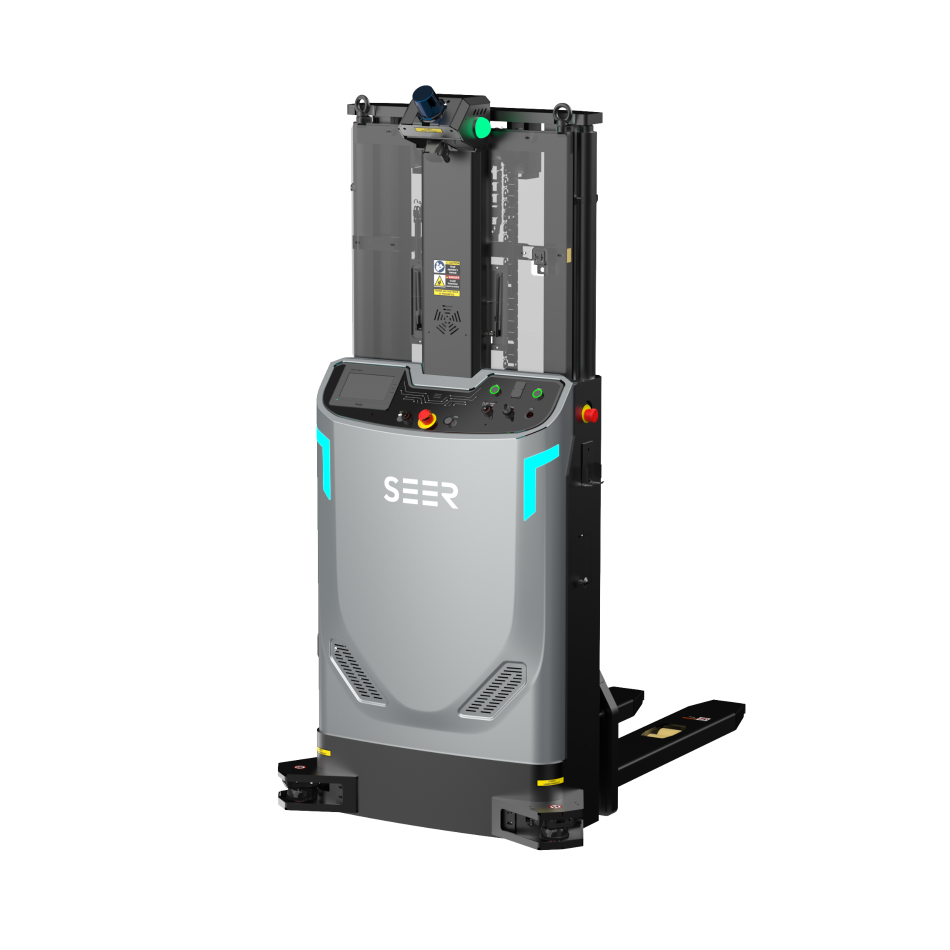

Safety SEER SlimStack 2000

SSS-2000EU

Safety SEER SlimStack 2000. Key specifications: Rated Load Capacity (kg) 2000 · Comprehensive Battery Life (h) 10 · Standard Lifting Height (mm) 1600 / 3000.

2000 Rated Load Capacity (kg)
10 Comprehensive Battery Life (h)
1600 / 3000 Standard Lifting Height (mm)
1336 Minimum Turning Radius (mm)
Request a quote Ask an engineer

Certifications: CE · EMC · ISO 3691-4 · ISO3691-4 · UL
English datasheet, spare parts and integration support provided by Yijia Robotics — authorized SEER Robotics distributor.

Specifications

Model SSS-2000EU — full technical parameters.

Technical parameters 21 items
Product name
Safety SEER SlimStack 2000
Operation type
Automatic navigation
Navigation type
Laser SLAM
Pallet type
Open pallet
Rated load capacity
2000 kg (4409.24 lb)
Load centre distance
600 mm (23.62 in)
Weight (with battery)
950 / 1175 kg (2094.39 / 2591.39 lb)
Standard lifting height
1600 / 3000 mm (62.99 / 118.11 in)
Forklift dimensions: L x W x H
1724 x 1039 x 1995 / 1724 x 1039 x 2229 mm (67.87 x 40.91 x 78.54 / 67.87 x 40.91 x 87.76 in)
Fork dimensions: L x W x H
1220 x 180 x 60 mm (48.03 x 7.09 x 2.36 in)
Fork outer width
555 / 600 / 680 mm (21.85 / 23.62 / 26.77 in)
Right-angle stacking aisle width, pallet 1000x1200 (1200 placed along the fork)
2003+200 mm (78.86+7.87 in)
Right-angle stacking aisle width, pallet 800x1200 (1200 placed along the fork)
1932+200 mm (76.06+7.87 in)
Right-angle stacking aisle width, pallet 1000x1000 (1000 placed along the fork)
1892+200 mm (74.49+7.87 in)
Minimum turning radius
1336 mm (52.60 in)
Ambient temperature and humidity range
TEMP: 0℃ to 50℃ / RH: 10% to 90%, no compression, no condensation (TEMP: 32F to 122F / RH: 10% to 90%, no compression, no condensation)
Driving speed: full load / no load
1.5 / 1.8 m/s (4.92 / 5.91 ft/s)
Passability (slope / step / gap)
(
Navigation position accuracy
±10 mm (±0.39 in)
Navigation angle accuracy
±0.5°
Battery specifications
24V / 210 Ah (lithium iron phosphate)
Continued 20 items
Comprehensive battery life
10 h
Charging time (10% to 80%)
2 h to 2.5 h
Charging method
Manual / Automatic
Lidar number
1 (SLM-SLE4248) +2 (SICK HV)+1（SLD40)
Wi-Fi roaming
●
3D obstacle avoidance
●
Pallet recognition
●
Cage stack
○
High shelf pallet recognition
○
Pallet stack
○
HMI display
●
E-stop button
●
Sound and light indicator
●
Braking distance: 1 m/s / 1.5 m/s
≤40 cm / ≤50 cm (≤15.75 in / ≤19.69 in)
360° laser protection
●
Fork height protection
●
ISO 3691-4
●
EMC
●
UN38.3
●
RED
●

Overview

The SSS-2000EU is a safety seer slimstack 2000 from SEER Robotics, supplied by Yijia Robotics with English documentation, spare parts and integration support.

  • Rated Load Capacity (kg): 2000
  • Comprehensive Battery Life (h): 10
  • Standard Lifting Height (mm): 1600 / 3000
  • Minimum Turning Radius (mm): 1336
  • Positioning Accuracy (mm,°): ±10, ±0.5
  • Driving Speed (Full load / No load) (m/s): 1.5 / 1.8

Standard features

  • Wi-Fi roaming
  • 3D obstacle avoidance
  • Pallet recognition
  • HMI display
  • E-stop button
  • Sound and light indicator
  • 360° laser protection
  • Fork height protection
  • ISO 3691-4
  • EMC
  • UN38.3
  • RED

Optional

  • Cage stack
  • High shelf pallet recognition
  • Pallet stack

Why buy from Yijia Robotics

  • Authorized SEER Robotics distributor — genuine hardware and factory firmware.
  • English datasheets, wiring diagrams and commissioning support.
  • Spare parts stock and remote technical assistance.
  • Fleet sizing, simulation and on-site integration engineering.

Need pricing for the SSS-2000EU?

Send us your application details — payload, lift height, aisle width and annual throughput. We reply with FOB/CIF pricing, lead time and the recommended configuration.

Get a quotation

Related models

Other configurations frequently compared with the SSS-2000EU.

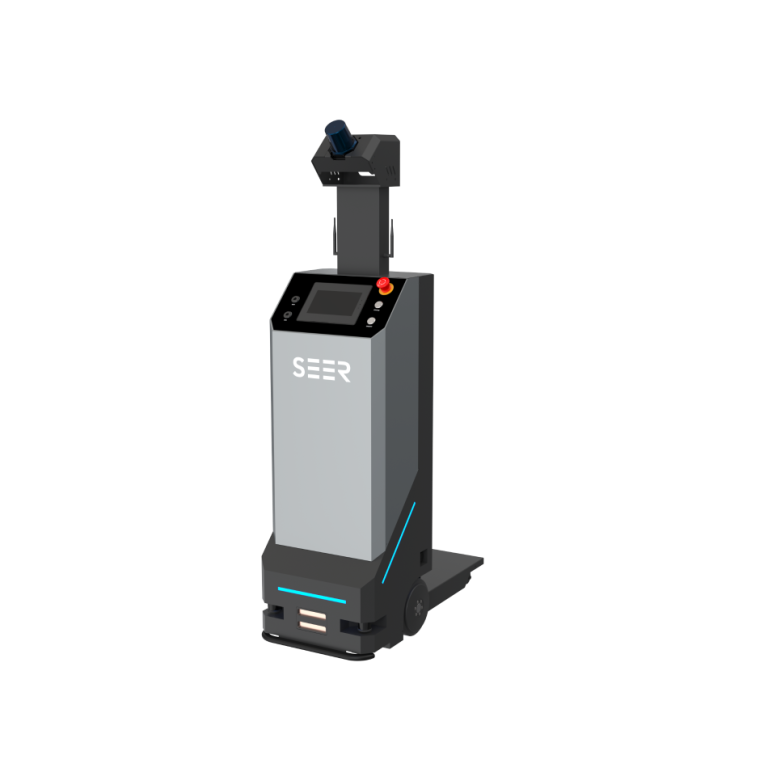

Counterbalanced Autonomous Forklift SFL-CPD20-Y
