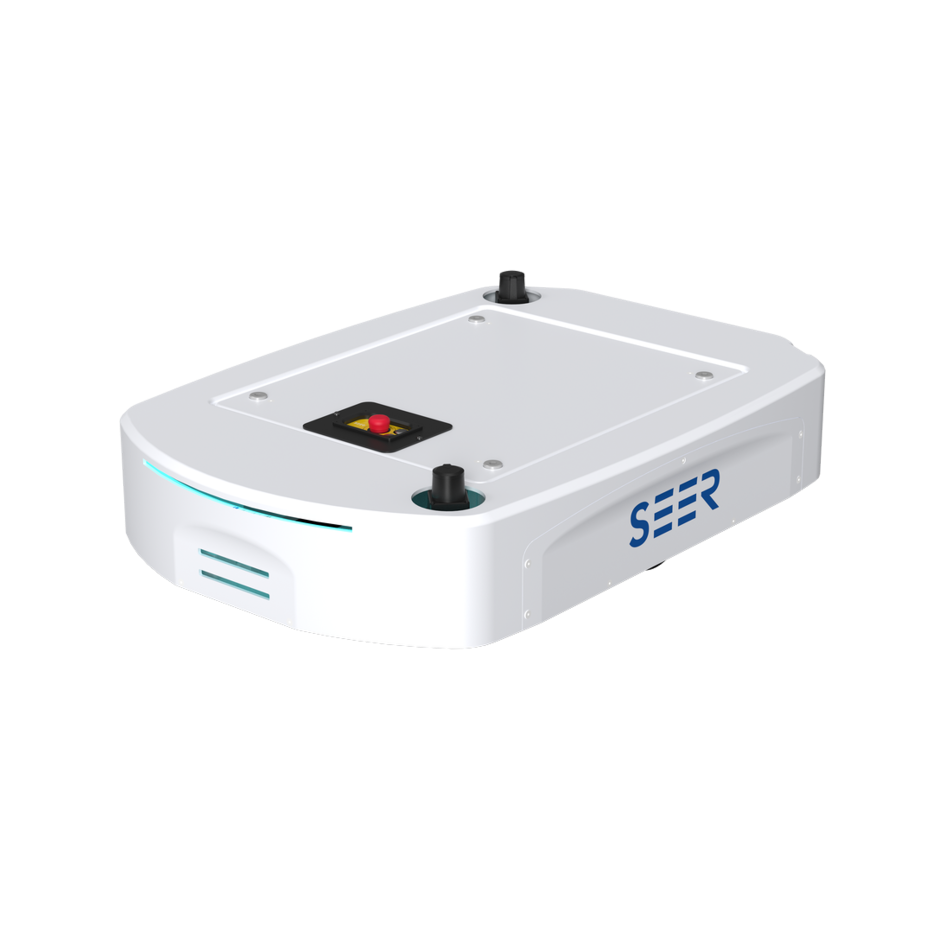

Laser SLAM Robot Chassis

AMB-300

Laser SLAM Robot Chassis. Key specifications: Maximum Load Capacity (kg) 300 · Comprehensive Battery Life (h) 12 · Rotation Diameter (mm) 1040.

300 Maximum Load Capacity (kg)
12 Comprehensive Battery Life (h)
1040 Rotation Diameter (mm)
2 Lidar Number
Request a quote Ask an engineer

Certifications: CE · EMC · UL
English datasheet, spare parts and integration support provided by Yijia Robotics — authorized SEER Robotics distributor.

Specifications

Model AMB-300 — full technical parameters.

Technical parameters 15 items
Product name
Laser SLAM Robot Chassis
Navigation type
Laser SLAM
L x W x H
1000 x 700 x 200 mm
Rotation diameter
1040 mm
Weight (with battery)
144 kg
Rated load
300 kg
Chassis ground clearance
25 mm
Navigation laser scanning height
215 mm
Ambient temperature and humidity range
TEMP: 0°C to 50°C / RH: 10% to 90%, no compression, no condensation
Minimum aisle width
840 mm
Navigation position accuracy
±5 mm
Navigation angle accuracy
±0.5°
Driving speed
≤1.4 m/s
Battery specifications
48 V / 40 Ah (lithium iron phosphate)
Comprehensive battery life
12 h
Continued 15 items
Charging time (10% to 80%)
≤1.5 h
Charging method
Manual / Automatic / Fast battery swap
Lidar number
2
E-stop button
●
Speaker
●
Ambient lamp
●
Basic functions
●
Wi-Fi roaming
●
Automatic charging
●
Shelf recognition
●
Laser reflector navigation
○
3D obstacle avoidance
○
Precise positioning with QR code
○
EMC
●
UN38.3
●

Overview

The AMB-300 is a laser slam robot chassis from SEER Robotics, supplied by Yijia Robotics with English documentation, spare parts and integration support.

  • Maximum Load Capacity (kg): 300
  • Comprehensive Battery Life (h): 12
  • Rotation Diameter (mm): 1040
  • Lidar Number: 2
  • Positioning Accuracy (mm,°): ±5, 0.5
  • Driving Speed (m/s): ≤1.4

Standard features

  • E-stop button
  • Speaker
  • Ambient lamp
  • Basic functions
  • Wi-Fi roaming
  • Automatic charging
  • Shelf recognition
  • EMC
  • UN38.3

Optional

  • Laser reflector navigation
  • 3D obstacle avoidance
  • Precise positioning with QR code

Why buy from Yijia Robotics

  • Authorized SEER Robotics distributor — genuine hardware and factory firmware.
  • English datasheets, wiring diagrams and commissioning support.
  • Spare parts stock and remote technical assistance.
  • Fleet sizing, simulation and on-site integration engineering.

Need pricing for the AMB-300?

Send us your application details — payload, lift height, aisle width and annual throughput. We reply with FOB/CIF pricing, lead time and the recommended configuration.

Get a quotation
