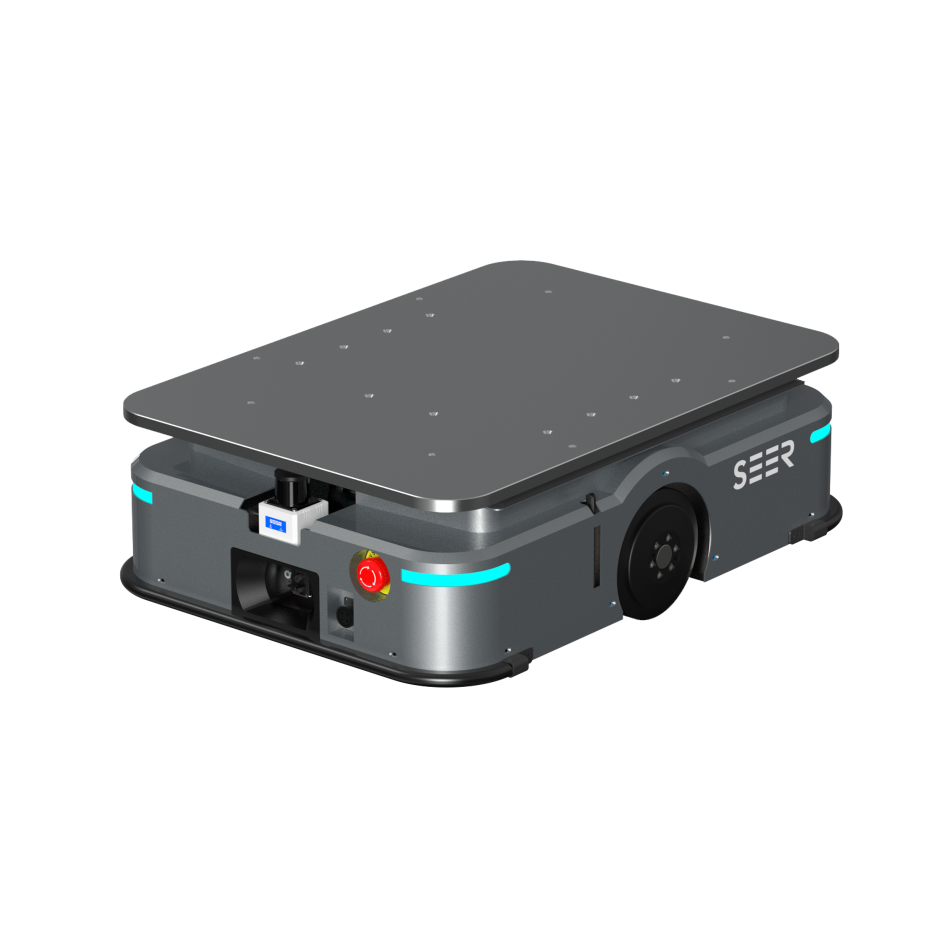

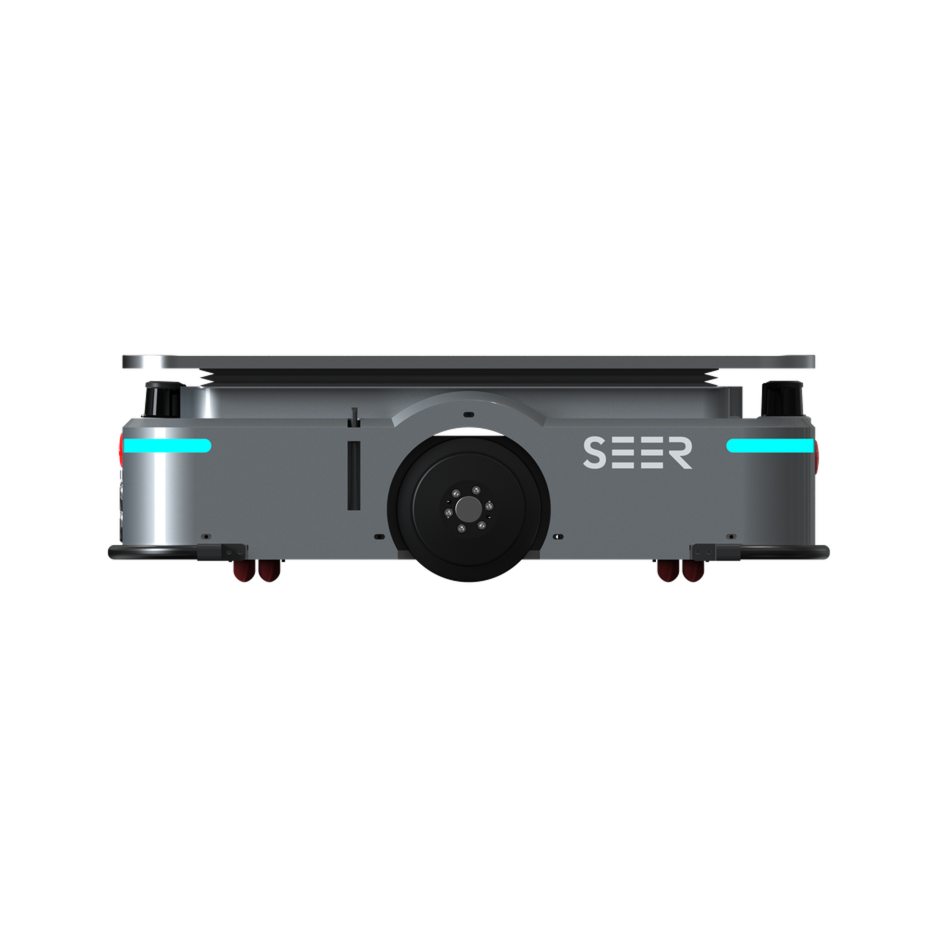

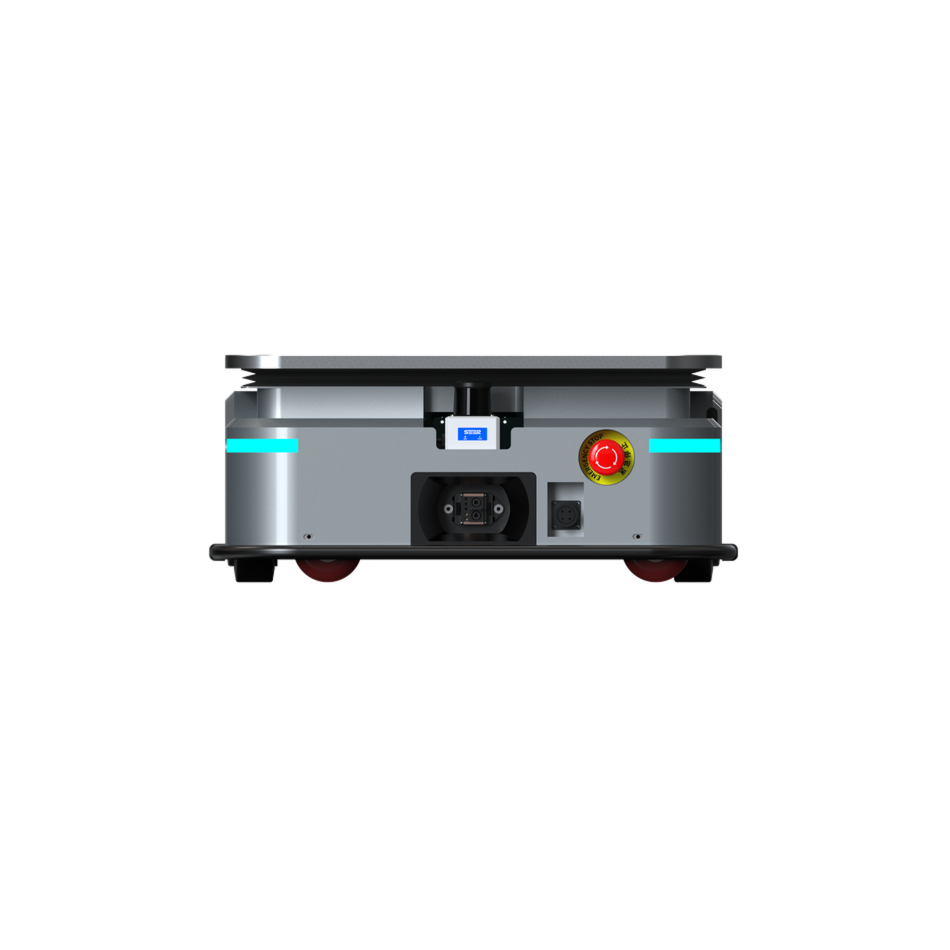

Laser SLAM Safety Lifting Robot
AMB-1000JS / AMB-500JS
Laser SLAM Safety Lifting Robot. Key specifications: Maximum Load Capacity (kg) 1000 · Comprehensive Battery Life (h) 7 · Rotation Diameter (mm) 1457.4.
1000
Maximum Load Capacity (kg)
7
Comprehensive Battery Life (h)
1457.4
Rotation Diameter (mm)
2
Lidar Number
Certifications: CE · EMC · ISO 3691-4 · UL
English datasheet, spare parts and integration support provided by Yijia Robotics
— authorized SEER Robotics distributor.
Specifications
Model AMB-1000JS / AMB-500JS — full technical parameters.
Technical parameters
17 items
- Product name
- Laser SLAM Safety Lifting Robot
- Navigation type
- Laser SLAM
- L x W x H
- 1330 x 952 x 290.5 mm
- Rotation diameter
- 1457.4 mm
- Weight (with battery)
- 265 kg
- Rated load
- 1000 kg
- Chassis ground clearance
- 30.5 mm
- Lifting platform dimensions
- 1300 x 920 mm
- Maximum lifting stroke
- 60±1 mm
- Navigation laser scanning height
- 185 mm
- Ambient temperature and humidity range
- TEMP: 0℃ to 50℃ / RH: 10% to 90%, no compression, no condensation
- Minimum aisle width
- 1092 mm
- Navigation position accuracy
- ±5 mm
- Navigation angle accuracy
- ±1°
- Driving speed
- ≤1.5 m/s
- Battery specifications
- 48 V / 40 Ah (lithium iron phosphate)
- Comprehensive battery life
- 7 h
Continued
16 items
- Charging time (10% to 80%)
- ≤2 h
- Charging method
- Manual / Automatic
- Lidar number
- 2
- E-stop button
- ●
- Speaker
- ●
- Ambient lamp
- ●
- Bumper strip
- ●
- Basic functions
- ●
- Wi-Fi roaming
- ●
- Automatic charging
- ●
- Shelf recognition
- ●
- Laser reflector navigation
- ○
- EMC
- ●
- UN38.3
- ●
- MD
- ●
- RED
- ●
Overview
The AMB-1000JS / AMB-500JS is a laser slam safety lifting robot from SEER Robotics, supplied by Yijia Robotics with English documentation, spare parts and integration support.
- Maximum Load Capacity (kg): 1000
- Comprehensive Battery Life (h): 7
- Rotation Diameter (mm): 1457.4
- Lidar Number: 2
- Positioning Accuracy (mm,°): ±5, ±1
- Driving Speed (m/s): ≤1.5
Standard features
- E-stop button
- Speaker
- Ambient lamp
- Bumper strip
- Basic functions
- Wi-Fi roaming
- Automatic charging
- Shelf recognition
- EMC
- UN38.3
- MD
- RED
Optional
- Laser reflector navigation
Why buy from Yijia Robotics
- Authorized SEER Robotics distributor — genuine hardware and factory firmware.
- English datasheets, wiring diagrams and commissioning support.
- Spare parts stock and remote technical assistance.
- Fleet sizing, simulation and on-site integration engineering.
