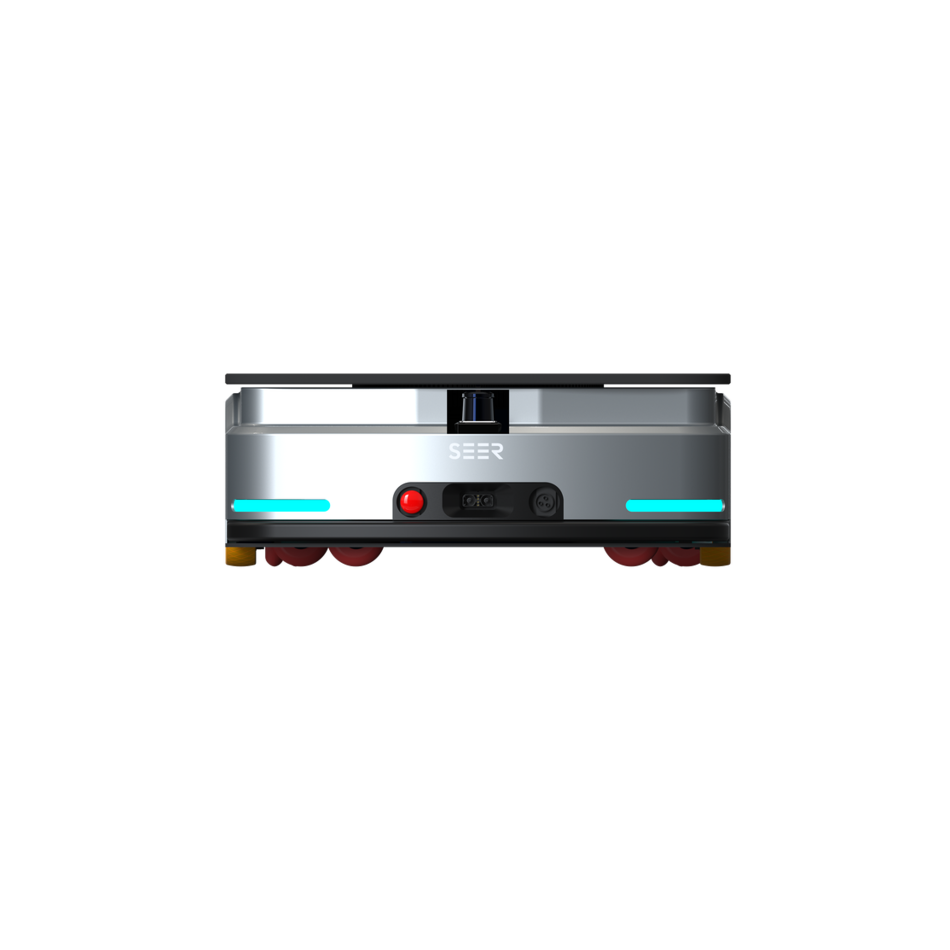

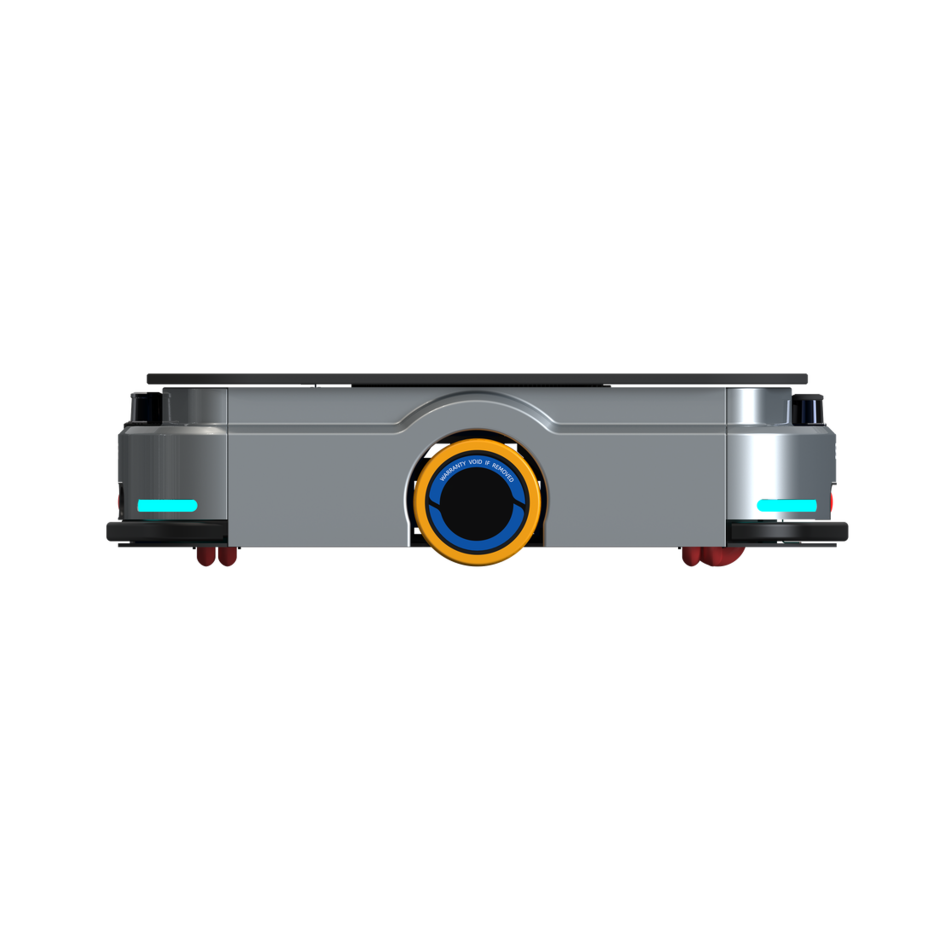

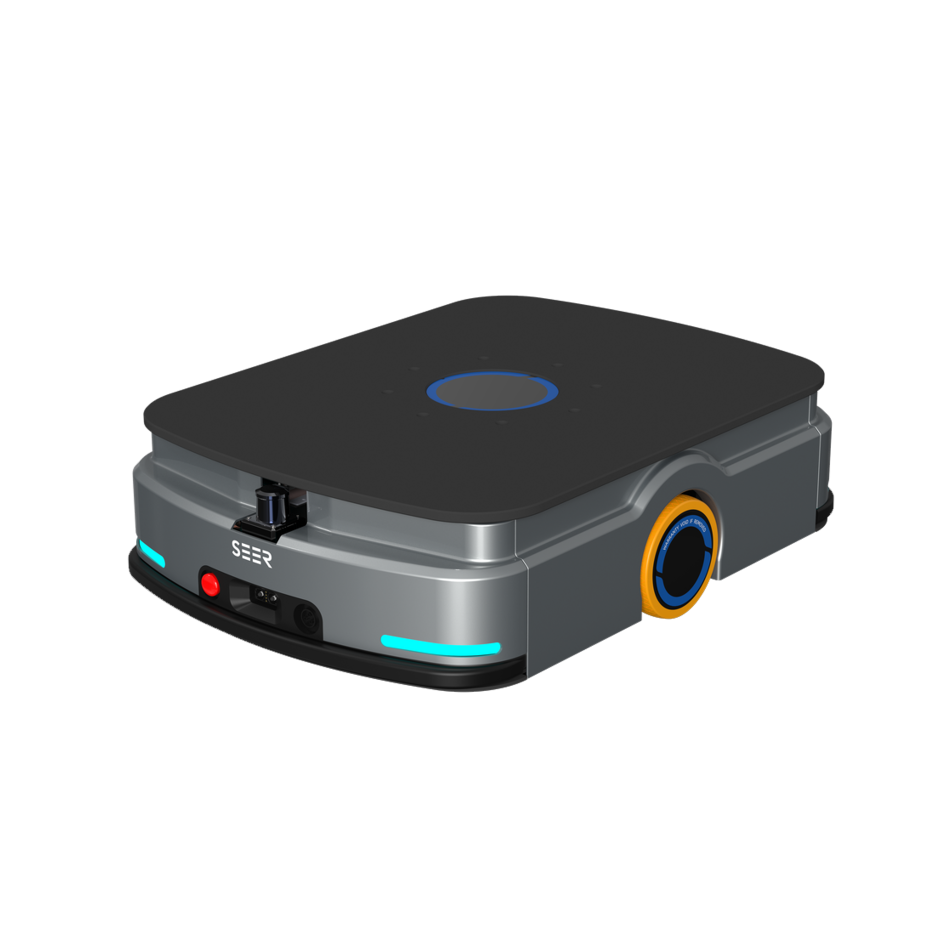

Laser SLAM Rotary Lifting Robot
SJV-SW600
Laser SLAM Rotary Lifting Robot. Key specifications: Maximum Load Capacity (kg) 600 · Comprehensive Battery Life (h) 8 · Rotation Diameter (mm) 1015.
600
Maximum Load Capacity (kg)
8
Comprehensive Battery Life (h)
1015
Rotation Diameter (mm)
2
Lidar Number
Certifications: CE · UL
English datasheet, spare parts and integration support provided by Yijia Robotics
— authorized SEER Robotics distributor.
Specifications
Model SJV-SW600 — full technical parameters.
Technical parameters
16 items
- Product name
- Laser SLAM Rotary Lifting Robot
- Navigation type
- Laser SLAM
- L x W x H
- 950 x 650 x 250 mm
- Rotation diameter
- 1015 mm
- Weight (with battery)
- 170 kg
- Rated load
- 600 kg
- Chassis ground clearance
- 25 mm
- Lifting platform dimensions
- 924 x 650 mm
- Maximum lifting stroke
- 60±2 mm
- Navigation laser scanning height
- 194 mm (H1)
- Ambient temperature and humidity range
- TEMP: 0°C to 50°C / RH: 10% to 90%, no compression, no condensation
- Minimum aisle width
- 790 mm
- Navigation position accuracy
- ±5 mm
- Navigation angle accuracy
- ±0.5°
- Driving speed
- ≤1.5 m/s
- Battery specifications
- 48 V / 24 Ah (lithium iron phosphate)
Continued
16 items
- Comprehensive battery life
- 8 h
- Charging time (10% to 80%)
- ≤2 h
- Charging method
- Manual / Automatic
- Lidar number
- 2
- E-stop button
- ●
- Speaker
- ●
- Ambient lamp
- ●
- Bumper strip
- ●
- Basic functions
- ●
- Wi-Fi roaming
- ●
- Automatic charging
- ●
- Shelf recognition
- ●
- Spin function
- ●
- Precise positioning with QR code
- ○
- QR code navigation
- ○
- Laser reflector navigation
- ○
Overview
The SJV-SW600 is a laser slam rotary lifting robot from SEER Robotics, supplied by Yijia Robotics with English documentation, spare parts and integration support.
- Maximum Load Capacity (kg): 600
- Comprehensive Battery Life (h): 8
- Rotation Diameter (mm): 1015
- Lidar Number: 2
- Positioning Accuracy (mm,°): ±5, ±0.5
- Driving Speed (m/s): ≤1.5
Standard features
- E-stop button
- Speaker
- Ambient lamp
- Bumper strip
- Basic functions
- Wi-Fi roaming
- Automatic charging
- Shelf recognition
- Spin function
Optional
- Precise positioning with QR code
- QR code navigation
- Laser reflector navigation
Why buy from Yijia Robotics
- Authorized SEER Robotics distributor — genuine hardware and factory firmware.
- English datasheets, wiring diagrams and commissioning support.
- Spare parts stock and remote technical assistance.
- Fleet sizing, simulation and on-site integration engineering.
Need pricing for the SJV-SW600?
Send us your application details — payload, lift height, aisle width and annual throughput. We reply with FOB/CIF pricing, lead time and the recommended configuration.
